RFID/NFC Antenna 50-Ohm

RFID/NFC Antenna 50-Ohm

  • General Information
    This antenna is compatible with all MCRNX readers of Minova Technology. Up to 10m coaxial cables could be used.

    MCRNANT-3040 -> 30x40mm

    MCRNANT-2030 -> 20x30mm
  • Technical Specs.
    Frequency13.56MHz
    Impedance50-Ohm
    Dimensions30 x 40mm
    Reading rangebis 60mm
    Temperature/Humidity-24 +75 C RH 95% NC

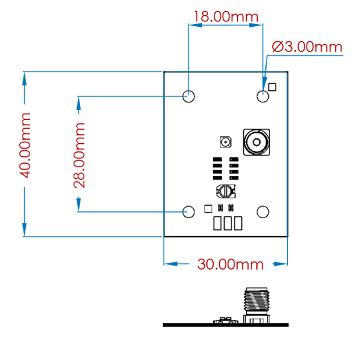

  • Dimensions
