MCR08M RFID Terminal

MCR08M RFID Terminal
MCR08M RFID Terminal
MCR08M RFID Terminal

  • General Information
    Our new RFID terminal offers a reliable and powerful solution for applications such as access control, time recording and logistics. With a modern design, intuitive operation and flexible application options, it meets the requirements of modern working environments. Robust, future-proof and user-friendly - this terminal is the ideal choice for efficient data collection and processing..

    Application Areas

    - Time recording
    - Access control
    - Vending machines
    - Parkmeter
    - Turnstiles

  • Technical Specs.
    Display: 4.3” TFT color LCD, 480x272 pixel IPS with capacitive touch
    Interfaces: PoE-Ethernet (Passive +12V)
    Wi-Fi
    RS232/RS485
    Buzzer
    2x Relay 1A/30V
    2x Optical isolated inputs
    RFID Interface: ISO14443A/B, ISO15693 and ISO18092 support
    Read/Write Distance 150mm
    Temperature Range: Operating: -20 to +70 °C
    Storage: -40 to +80 °C
    Power Supply: +12VDC nominal @0.3A max. +48V

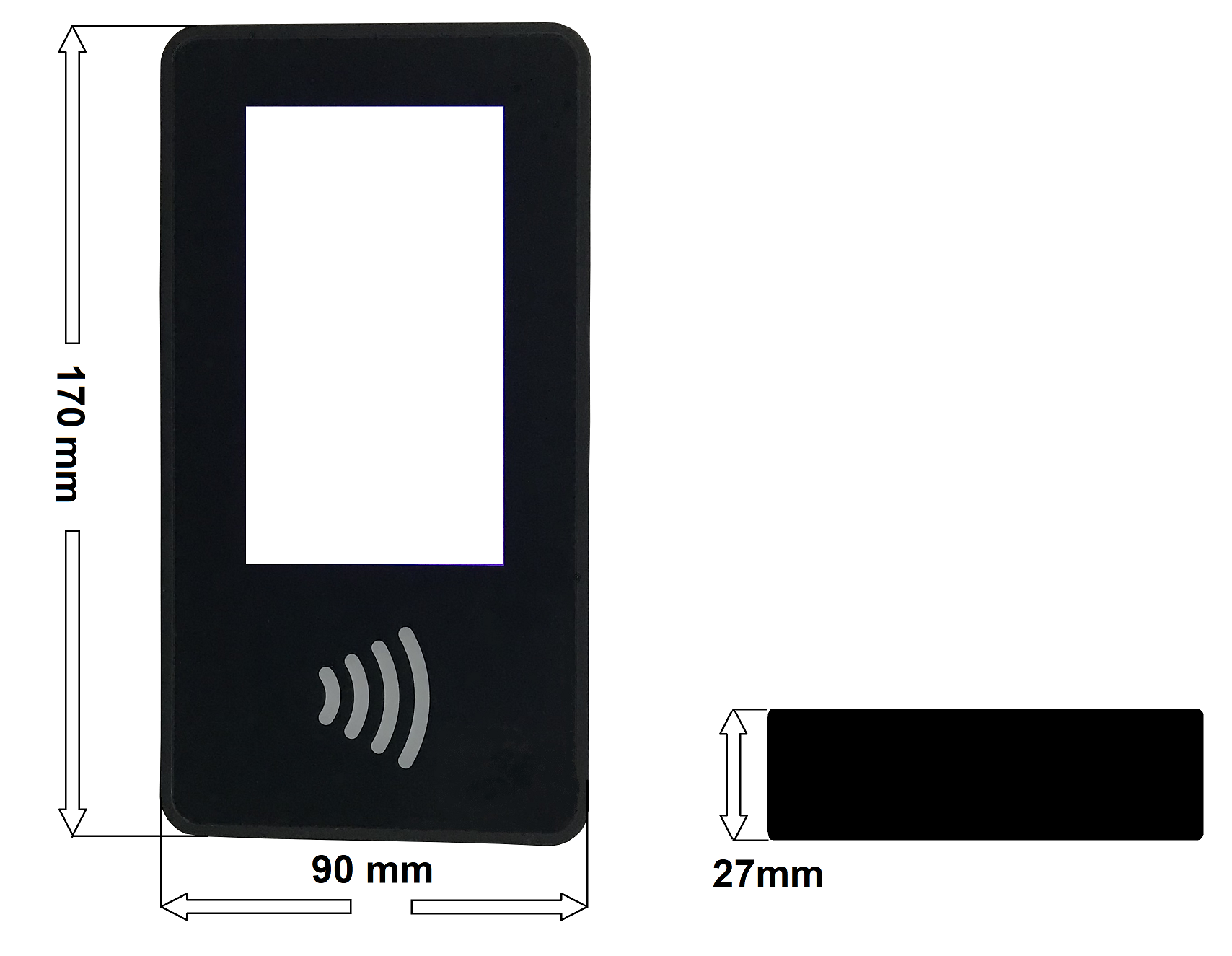

  • Dimensions
