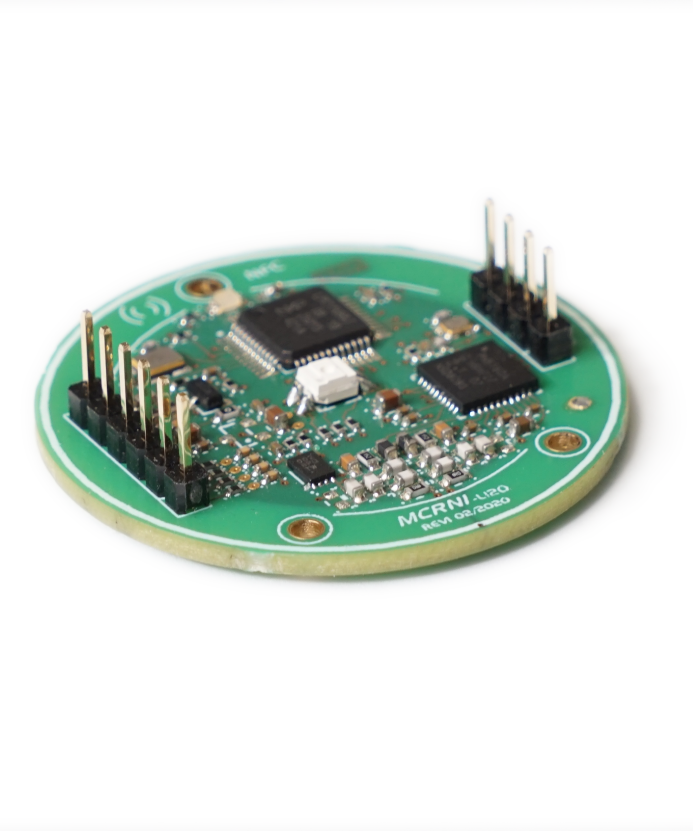

MCRN1L RFID/NFC Low-cost Module

MCRN1L RFID/NFC Low-cost Module

  • General Information
    The MCRN1L isa a low-cost NFC-Module with RS232-TTL Interface.

    A powerful internal antenna can read tags up to 60mm distance. Different external 50 Ohm antennas with coaxial cable can be attached to the uFL connector.
  • Technical Specs.
    RS232-TTL Interface
    Ultra low power microcontroller
    ISO14443A/B, ISO15693 and ISO18092 support
    External 50-ohm or internal antenna
    Operating range up to 60mm for internal antenna
    +5VDC power supply (optional +3V3 version)
    Max. 250mA @+5V current consumption

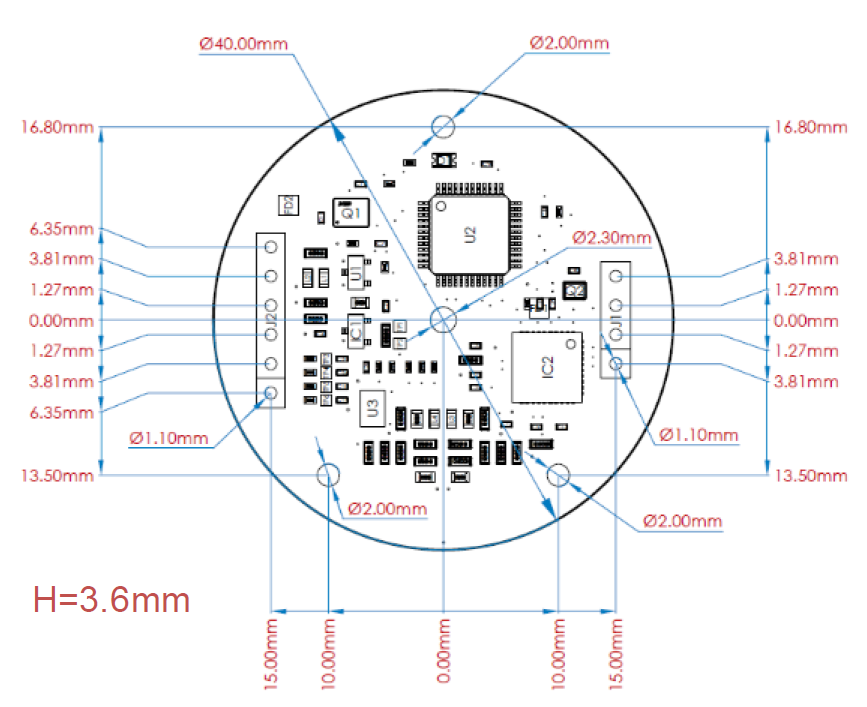

  • Dimensions
