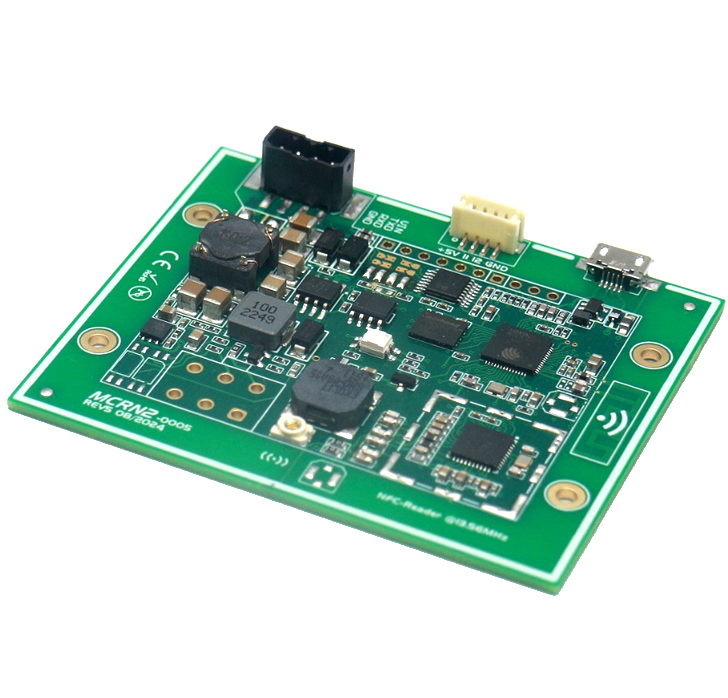

The MCRN2 RFID Reader/Writer Module is a versatile and robust device designed for various industrial and commercial applications.
Operating at a frequency of 13.56 MHz, it supports multiple RFID standards such as ISO14443A/B and ISO15693, and is compatible with a
wide range of RFID cards and transponders, including MIFARE® DESFire, MIFARE® Classic, and NTAG. The module features multiple interfaces,
including RS232/RS485, USB, and optional Wi-Fi/BLE connectivity, making it highly adaptable to different system requirements.
With a wide operating voltage range from +7V to +60V and support for USB power, the MCRN2 is suitable for integration into diverse environments,
from industrial control systems to access control and retail applications. The modules robust design includes advanced security features like

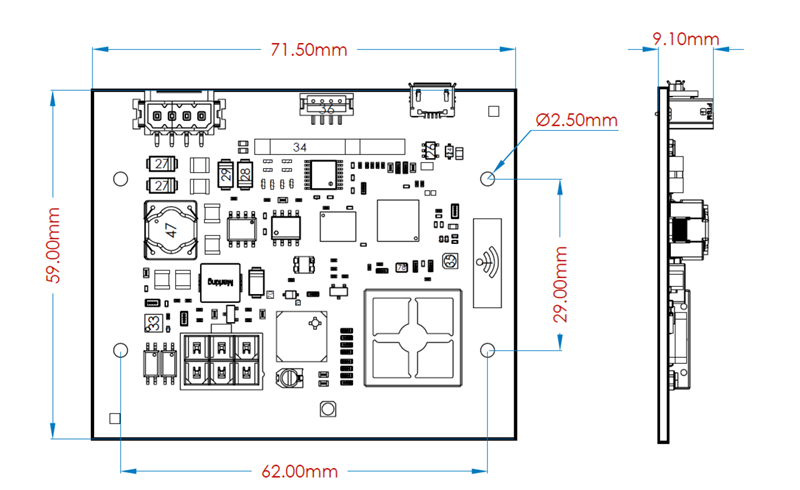

256-bit ECDSA and 128-bit AES encryption, ensuring secure data transactions. Its compact form factor, coupled with options for internal or external

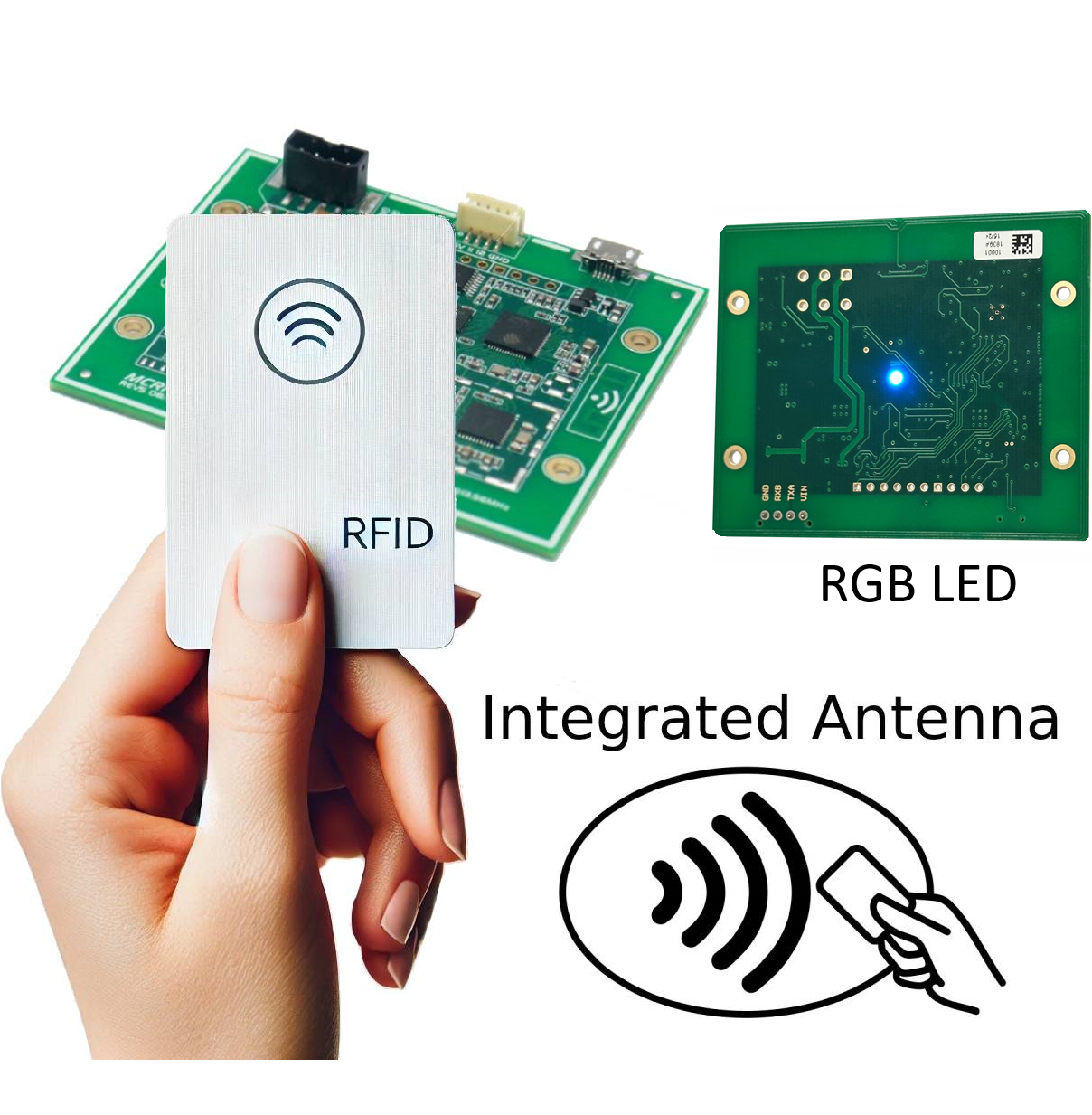

antennas, and a built-in tricolor RGB LED indicator, makes the MCRN2 a powerful and flexible solution for both simple and complex RFID systems.
Applications
- Electric Vehicle (EV) Charging Stations:
The MCRN2 can be integrated into EV charging stations to authenticate users via RFID cards or tags, ensuring secure access and billing.
- Access Control Systems:
The device can be used in building access systems, enabling secure entry for authorized personnel through RFID-enabled badges or cards.
- Industrial Automation:
In manufacturing environments, the MCRN2 can be used to track tools, machinery, or inventory by integrating it into industrial control systems.
- Retail and Point of Sale (POS) Systems:
The reader can be employed in retail environments for customer loyalty programs, inventory management, or contactless payments.
- Public Transportation:
It can be integrated into ticketing systems for buses, trains, and other forms of public transportation, allowing for quick and secure fare collection through RFID cards.
- Vending Machines:
The MCRN2 can be embedded in vending machines for cashless transactions, where customers can use RFID cards or NFC-enabled devices to make purchases.
- Library Management:
In libraries, the reader can be used for checking out and returning books, streamlining the process and reducing manual errors.
- Parking Management:
It can be utilized in parking systems to manage access, track vehicle entry and exit, and process payments via RFID-enabled parking cards.
- Logistics and Supply Chain:
The reader can be implemented in warehouses and distribution centers to track goods, manage inventory, and ensure accurate dispatching and receiving of items.
- Healthcare:
In hospitals, the MCRN2 can be used for patient identification, medication tracking, and access control to restricted areas.
These use cases highlight the versatility of the MCRN2 RFID Reader/Writer Module across various industries, leveraging its robust features such as wide voltage support, multiple interface options, and strong environmental tolerance.
