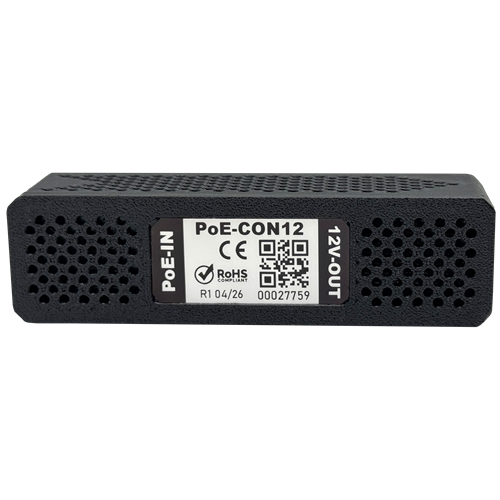

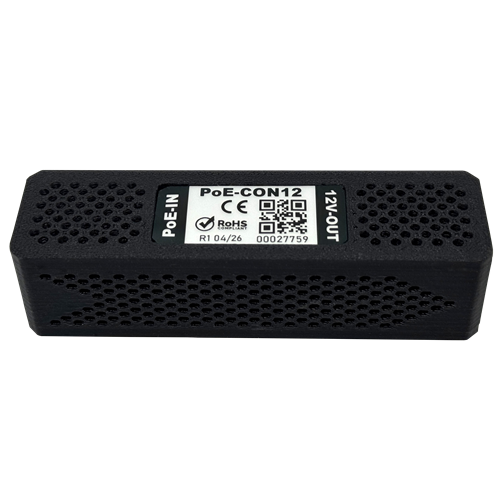

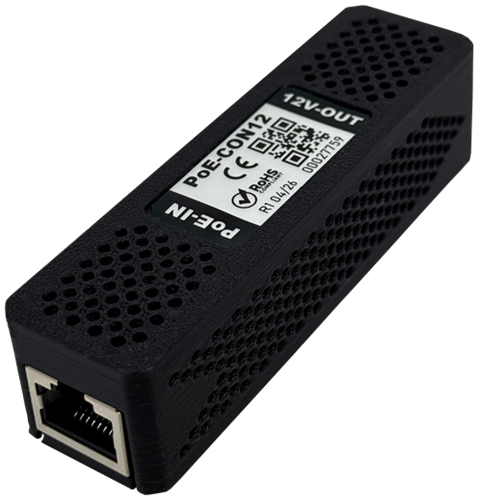

The PoE-CON12 is a compact and efficient DC/DC converter designed to power 12 V devices via Ethernet (Power over Ethernet).
It enables the operation of devices requiring a passive 12 V supply directly from an existing PoE infrastructure, eliminating
the need for external power supplies or additional cabling.
The converter is compliant with IEEE 802.3af (PoE) and compatible with IEEE 802.3at (PoE+) PSE equipment. It operates over
a wide input voltage range of 36 V to 57 VDC, allowing flexible integration with standard PoE switches and midspan injectors.
Key Features
- IEEE 802.3af compliant powered device (PD)
- Compatible with IEEE 802.3at (PoE+) PSE
- Wide input voltage range: 36–57 VDC
- Regulated 12 VDC output (passive PoE)
- Integrated PD interface with detection and classification
- Isolated DC/DC conversion
- Transparent data pass-through (10/100BASE-T)
- No configuration required
- Compact and easy to integrate
