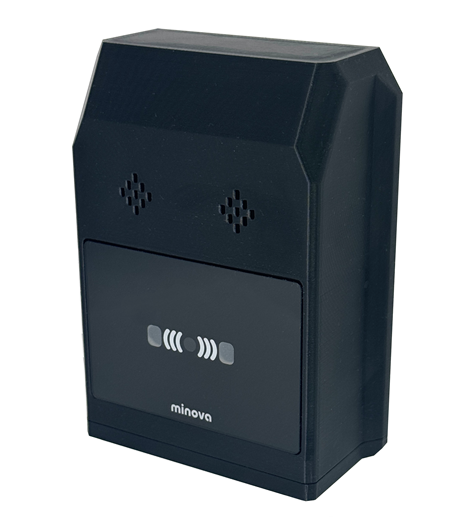

MCRN7 RFID & QR Code Linux Terminal


  • General Information
    Our new compact RFID and QR code terminal is purpose-built for outdoor use. Housed in a weatherproof IP65-rated enclosure, it is fully protected against rain, dust, and mechanical impact – making it ideal for gates, driveways, parking lots, and outdoor access points.

    Key Features

    - Waterproof housing (IP65) – ideal for outdoor installation
    - Rugged design for industrial and commercial use
    - Integrated RFID/NFC reader
    - QR/barcode scanner (1D/2D)
    - Network-ready: Ethernet and Wi-Fi
    - Flexible REST-API interface and customizable software

    Ideal for

    - Outdoor access control
    - Time attendance at remote locations
    - Gate or barrier control
    - Parking management
    - QR code check-in (e.g. for events or deliveries)


  • Technical Specs.
    Interfaces: PoE-Ethernet
    Wi-Fi 6 2.4G & 5G
    RS232/RS485
    QR-Code reader 1D/2D
    Dual speakers
    2x Solid-sate Relay 1A/30V
    2x Optical isolated inputs
    RFID Interface: ISO14443A/B, ISO15693 and ISO18092 support
    Read/Write Distance 150mm
    Temperature Range: operating: -20 to +70 °C
    Storage: -40 to +80 °C
    Power Supply: +12VDC nominal @0.5A max. +48V

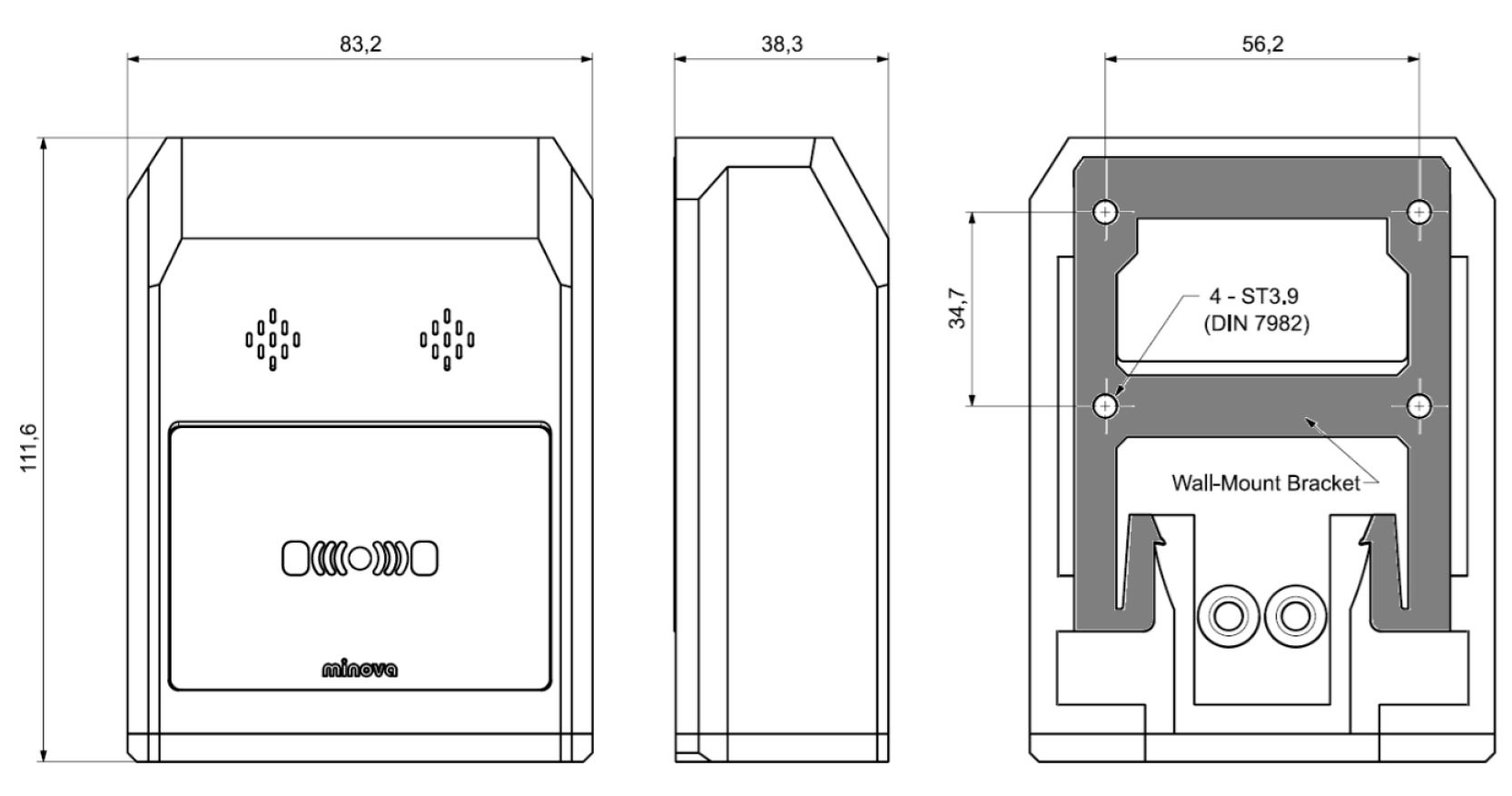

  • Dimensions
