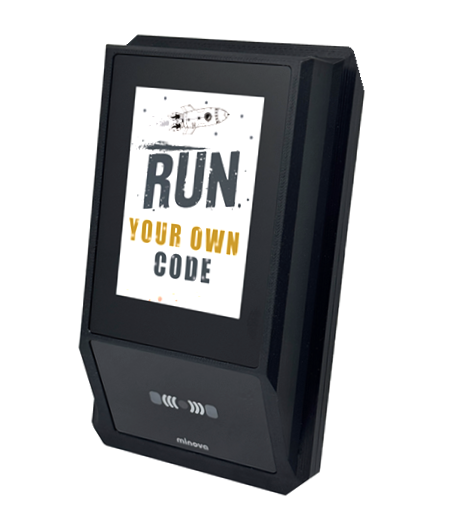

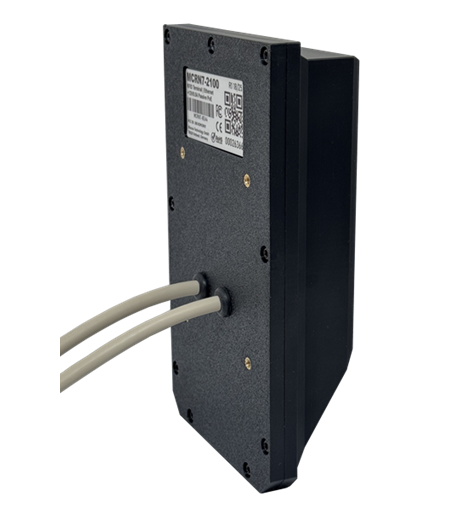

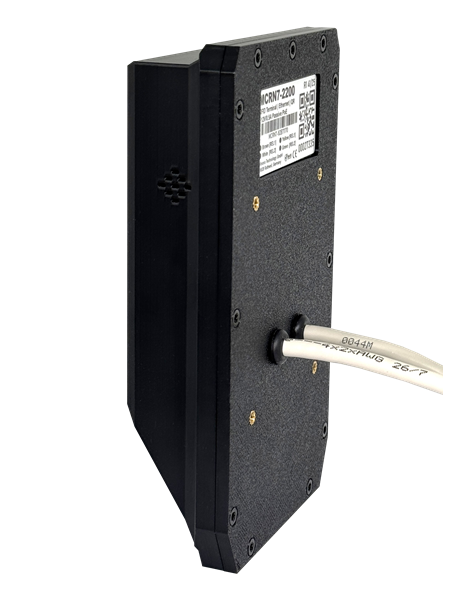

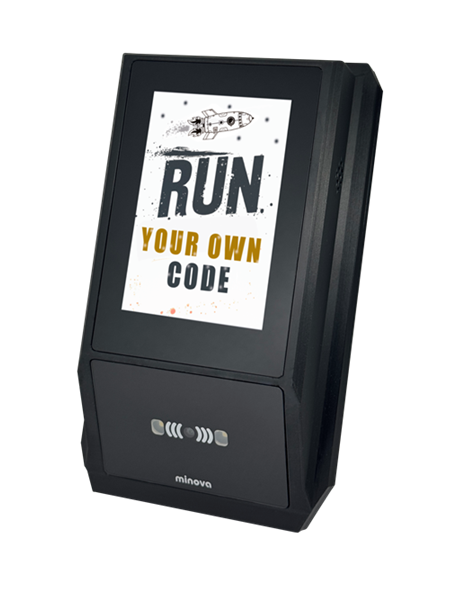

MCRN7 RFID & QR Code Outdoor Terminal


  • General Information
    Our latest Linux-based RFID and QR code terminal is specially designed for outdoor environments. With its waterproof and weather-resistant housing, it is perfectly suited for challenging conditions such as building entrances, industrial sites, or parking areas.

    The terminal combines modern technologies like RFID/NFC reader, QR/barcode scanner, touchscreen display, and network communication (LAN/Wi-Fi) in a compact, industrial-grade enclosure. Thanks to its flexible Linux software platform, it can be customized for a wide range of applications – from access control and time tracking to vehicle identification and cloud integration.

    Key Features

    - Waterproof housing (IP65) – ideal for outdoor installation
    - Rugged design for industrial and commercial use
    - Integrated RFID/NFC reader
    - QR/barcode scanner (1D/2D)
    - 3.5" color touchscreen display
    - Network-ready: Ethernet and Wi-Fi
    - Flexible REST-API interface and customizable software

    Ideal for

    - Outdoor access control
    - Time attendance at remote locations
    - Gate or barrier control
    - Parking management
    - QR code check-in (e.g. for events or deliveries)


  • Technical Specs.
    Display: 3.5” TFT color LCD, 320x480 pixel IPS with capacitive touch
    Interfaces: PoE-Ethernet
    Wi-Fi 6 2.4G & 5G
    RS232/RS485
    QR-Code reader 1D/2D
    Dual speakers
    2x Solid-sate Relay 1A/30V
    2x Optical isolated inputs
    RFID Interface: ISO14443A/B, ISO15693 and ISO18092 support
    Read/Write Distance 150mm
    Temperature Range: operating: -20 to +70 °C
    Storage: -40 to +80 °C
    Power Supply: +12VDC nominal @0.5A max. +48V

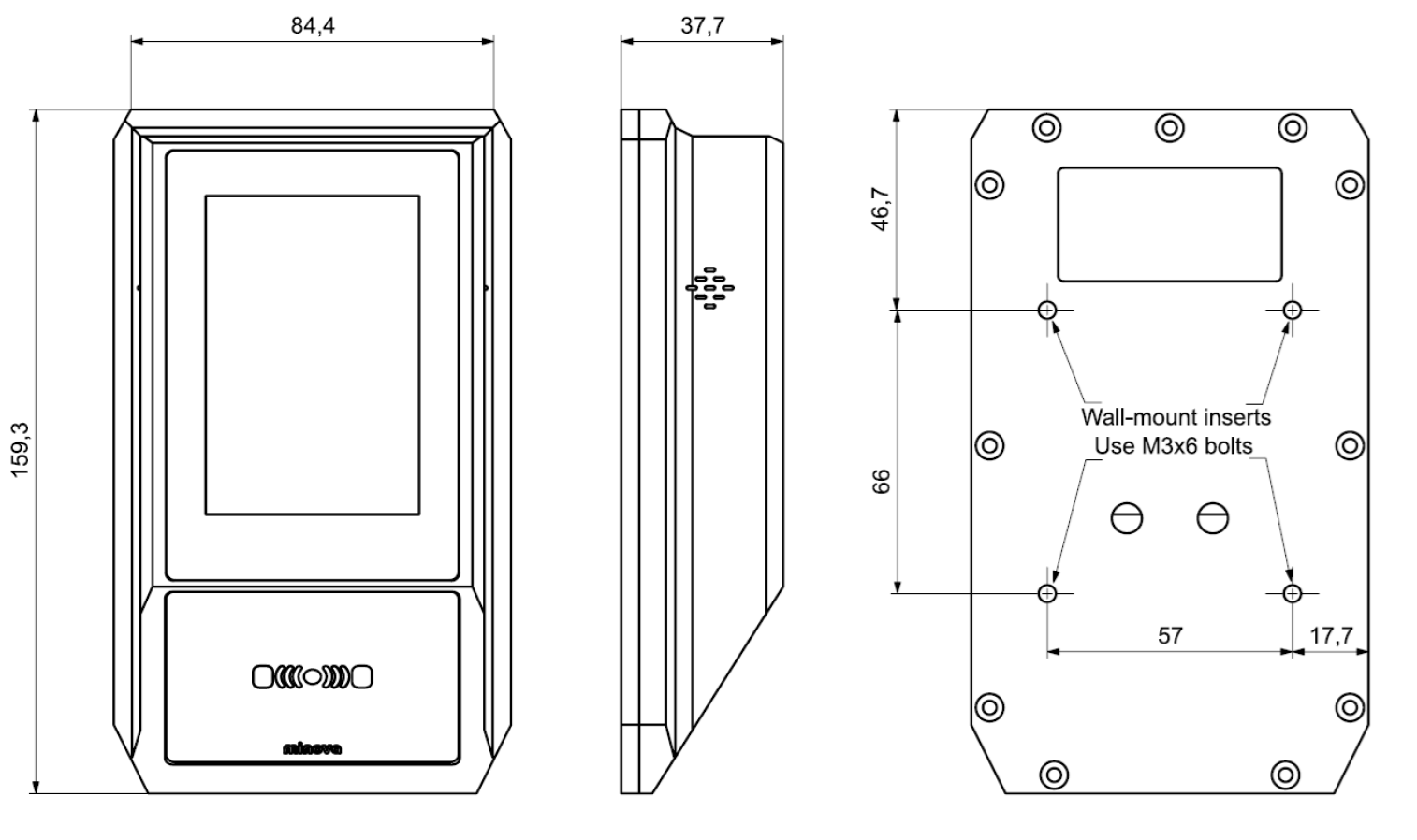

  • Dimensions
