MCRN2P RFID/NFC Outdoor Reader


  • General Information

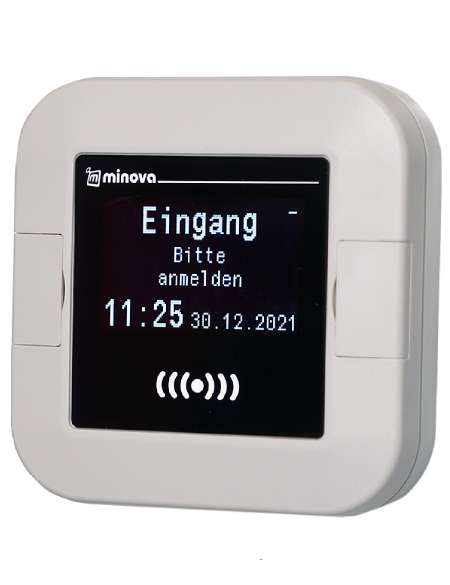

    The MCRN2P is a robust outdoor RFID reader equipped with an OLED display, designed for secure access control in various environments. Ideal for a wide range of access points, it ensures reliable and efficient management of authorized entries. With its durable build, its suited for all-weather conditions, making it a dependable choice for high-security areas. The OLED display provides clear instructions, enhancing user experience and operational efficiency. Perfect for locations requiring stringent access management, such as depots or logistics hubs.

    Applications

    - Electric Vehicle (EV) Charging Stations: The MCRN2P can be integrated into EV charging stations to authenticate users via RFID cards or tags, ensuring secure access and billing.

    - Access Control Systems: The device can be used in building access systems, enabling secure entry for authorized personnel through RFID-enabled badges or cards.

    - Industrial Automation: In manufacturing environments, the MCRN2P can be used to track tools, machinery, or inventory by integrating it into industrial control systems.

    - Retail and Point of Sale (POS) Systems: The reader can be employed in retail environments for customer loyalty programs, inventory management, or contactless payments.

    - Public Transportation: It can be integrated into ticketing systems for buses, trains, and other forms of public transportation, allowing for quick and secure fare collection through RFID cards.

    - Vending Machines: The MCRN2P can be embedded in vending machines for cashless transactions, where customers can use RFID cards or NFC-enabled devices to make purchases.

    - Library Management: In libraries, the reader can be used for checking out and returning books, streamlining the process and reducing manual errors.

    - Parking Management: It can be utilized in parking systems to manage access, track vehicle entry and exit, and process payments via RFID-enabled parking cards.

    - Logistics and Supply Chain: The reader can be implemented in warehouses and distribution centers to track goods, manage inventory, and ensure accurate dispatching and receiving of items.

    - Healthcare: In hospitals, the MCRN2P can be used for patient identification, medication tracking, and access control to restricted areas.
  • Technical Specs.
    Enclosure: IP67
    Display: OLED 128x64 pixel
    Interfaces: PoE-Ethernet
    RS232/RS485
    Buzzer
    2x Solid-sate Relay 1A/30V
    2x Optical isolated inputs
    RFID Interface: ISO14443A/B, ISO15693 and ISO18092 support
    Read/Write Distance 100mm
    Temperature Range: Operating: -40 to +85 °C
    Storage: -40 to +85 °C
    Power Supply: +12VDC nominal @50mA max. +48V

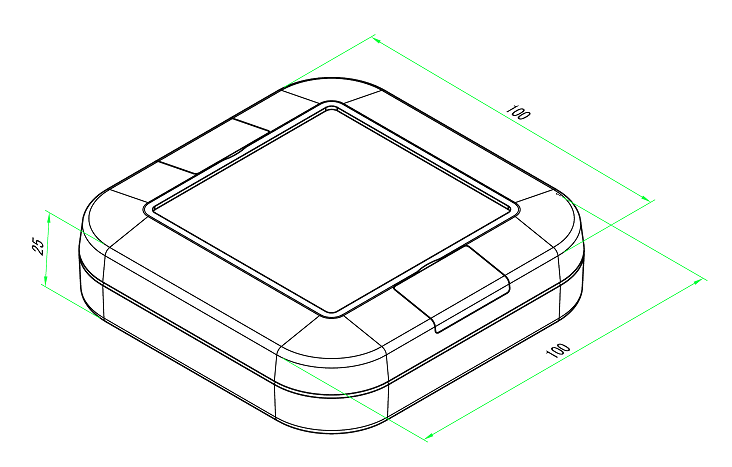

  • Dimensions
