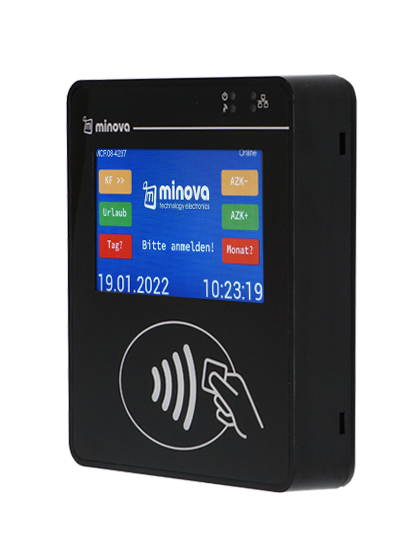

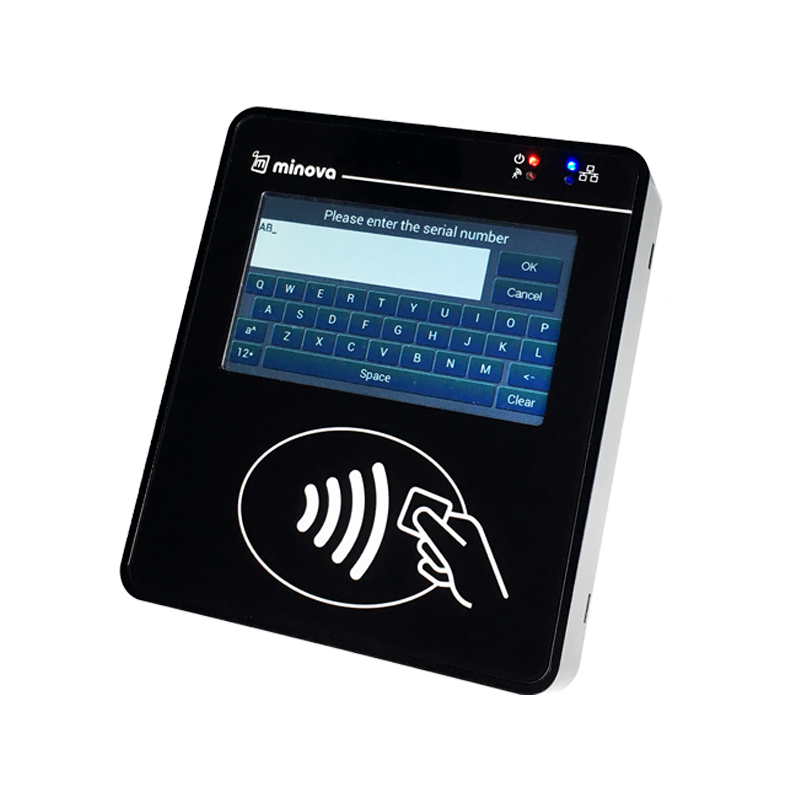

MCR08N RFID/NFC Terminal

MCR08N RFID/NFC Terminal
MCR08N RFID/NFC Terminal
MCR08N RFID/NFC Terminal
MCR08N RFID/NFC Terminal

  • General Information
    MCR08 is a cost-effective contactless RFID/NFC terminal for access control and time management applications.
    MCR08 supports rich communication options including Ethernet, GSM/LTE, RS232 and RS485 etc. The MCR08 can work in online mode and connected to the server through GSM/LTE or Ethernet or in offline mode. In offline case, all activities are sent to the server when the terminal goes online.

    A software development kit is available for quick and easy development and integration with different software applications.

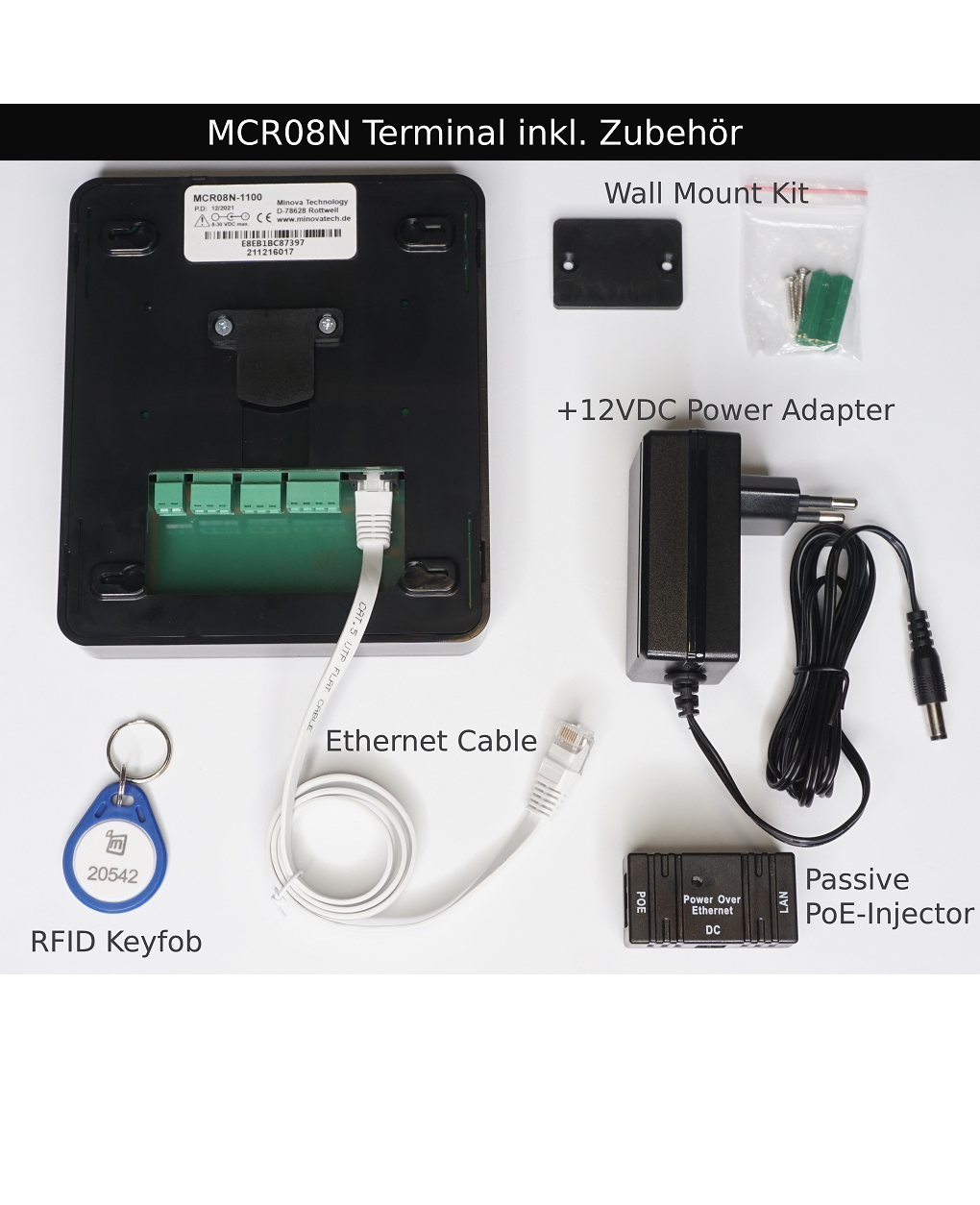

    For the easy installation, a wall mount kit can be used.

    Applications

    - Time and Attendance
    - Public Transport

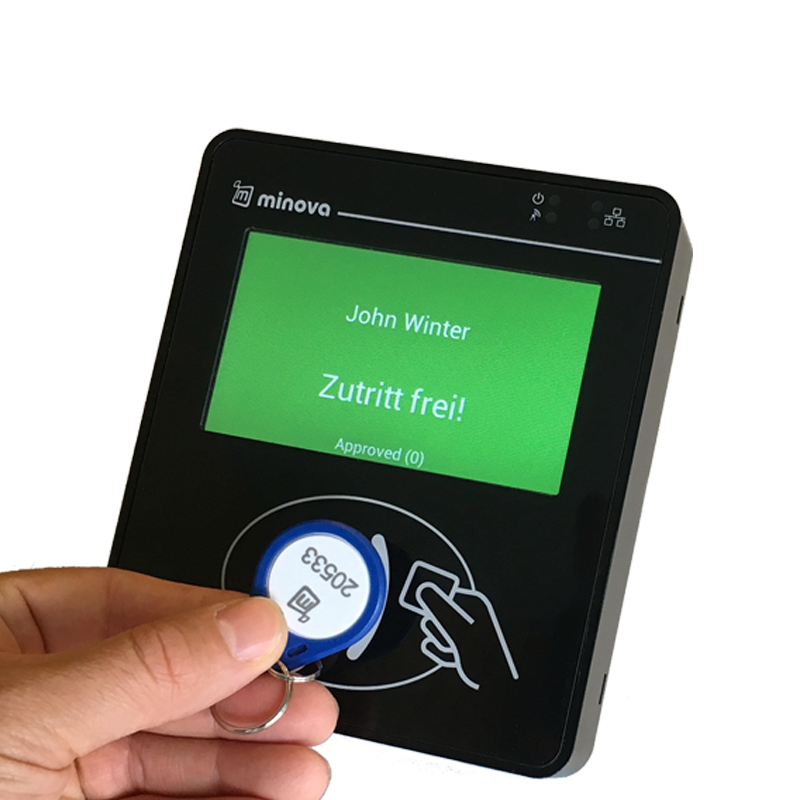

    - Access Control
    - Vending Machines

  • Technical Specs.
    LCD4.3'' TFT
    TouchResistive Touch Panel, Indstrial Grade
    CPUARM Cortex 32Bit CPU
    Contactless Reader
     MIFARE® ISO14443A
     Classic, Plus, NTAG and Ultralight Contactless Cards Read & Write
    Ethernet
    10/100BaseT
    Globally Unique MAC Address
    TCP/IP Stack
    TCP/IP Client-Server Communication
    UDP Support
    DHCP or Static IP
    ICMP Ping Support
    Configuration with miFinder over the local network
    GSM (optional)
    2G
    4G/LTE
    MemoryFLASH 32MB
     FRAM 128KB
    AudioReal Audio, (Internal Amplifier and Speaker)
    Serial Ports
     RS232
     RS485
    I/O
     4 Digital Inputs
     2 Relay Outputs
    Operating Voltage8-36V DC
    Operating Temperature-20 +80 C RH 80% NC

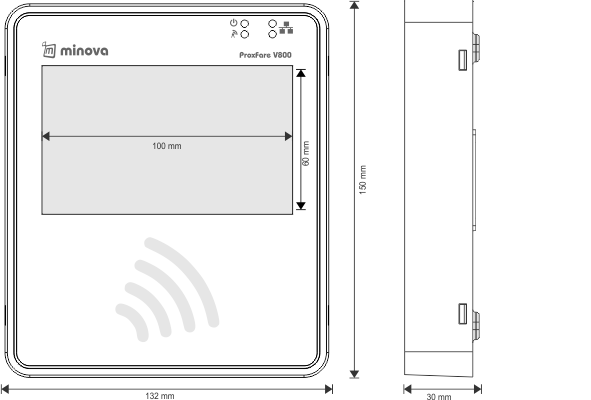

  • Dimensions
