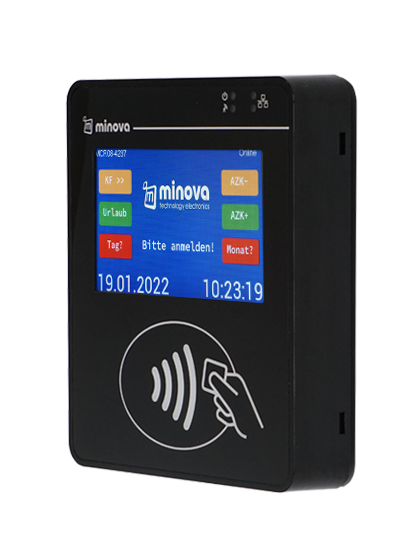

MCR08 RFID/NFC Terminal
MCR08 is a cost-effective contactless terminal for access control and time management applications.
| MCR08-HF | MCR08-LF | MCR08-LTE | MCR08-MDB | |
| Variant |  |
 |
 |
 |
| HF 13.56MHz | Yes | Yes | Yes | Yes |
| LF 125 KHz | - | Yes | - | - |
| GSM | - | - | 4G/LTE | - |

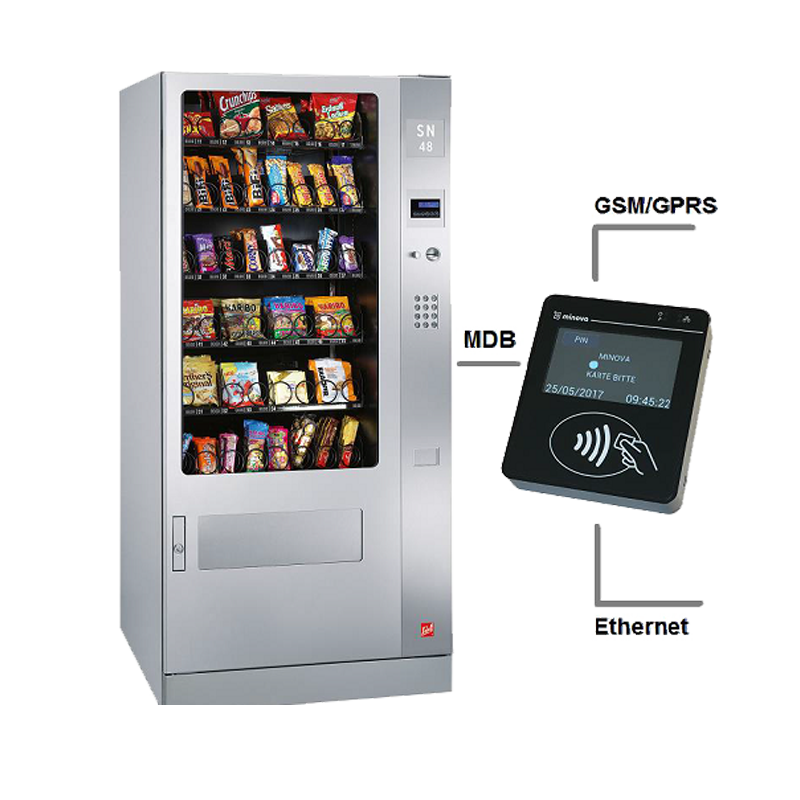

| MDB | - | - | - | MDB 3.0 |
| Ethernet | 10/100-MBit/s | 10/100-MBit/s | 10/100-MBit/s | 10/100-MBit/s |
| RS232 | Yes | Yes | Yes | Yes |
| RS485 | Yes | Yes | Yes | Yes |
| ISO14443A/B | Yes | Yes | Yes | Yes |
| Supported Transponders |
MIFARE® Classic MIFARE® Ultralight MIFARE® DESFire NTAG |
MIFARE® Classic MIFARE® Ultralight MIFARE® DESFire NTAG EM4100 |
MIFARE® Classic MIFARE® Ultralight MIFARE® DESFire NTAG |
MIFARE® Classic MIFARE® Ultralight MIFARE® DESFire NTAG |
| Int. Antenna | Yes | Yes | Yes | Yes |
| Speaker/Buzzer | Yes | Yes | Yes | Yes |
| Relays | 2 | 2 | 2 | 2 |
| Power supply | +8V to +36V DC | +8V to +36V DC | +8V to +36V DC | +8V to +36V DC |
| Part number | MCR08-1100 | MCR08-1200 | MCR08-1400 | MCR08-1500 |
